Data compilation FY2021 (Environmental report)

Action2
< Minimum CO₂ Monozukuri >
Action4
< Eco-Materials & Low-Emissions >
Action5
< Minimum Environmental Impact Production >
Action8
< Workplaces Surrounded by Greenery and an Abundance of Nature >
Action10
< Environmental Management >

Action 2 ＜Minimum CO₂ Monozukuri＞

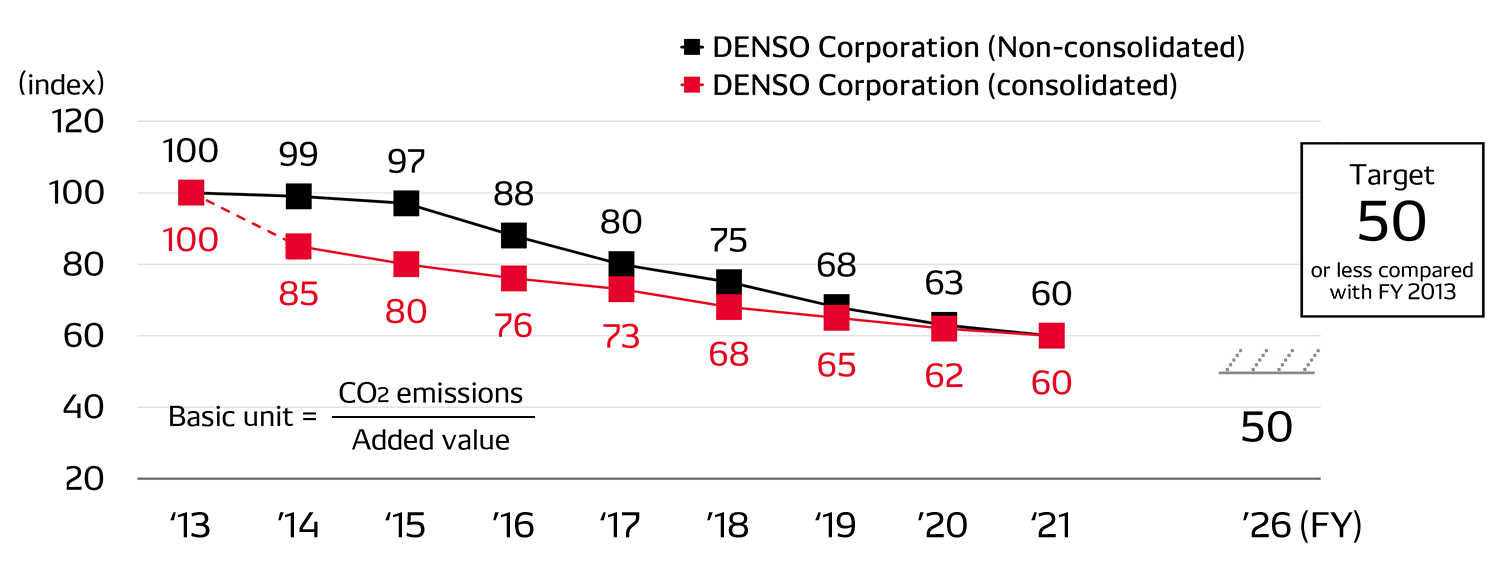

CO₂ emissions basic unit of the DENSO Group

CO₂ Emissions of the DENSO Group (Scope 1 and Scope 2)

(Thousands of t-CO₂)

	Fiscal 2019	Fiscal 2020	Fiscal 2021
DENSO CORPORATION	852	841	819
Domestic Group companies	317	277	264
Overseas Group companies	738	766	700
Total (Scope 1 and Scope 2)	1,907	1,883	1,784

Breakdown of Global Scope 1 and Scope 2 CO₂ Emissions (the DENSO Group)
(Thousands of t-CO₂)
		Fiscal 2019	Fiscal 2020	Fiscal 2021
Scope 1	DENSO CORPORATION	437	449	428
	Domestic Group companies	82	57	56
	Overseas Group companies	156	205	199
Scope 2	DENSO CORPORATION	415	392	391
	Domestic Group companies	235	220	208
	Overseas Group companies	582	560	502
Total		1,907	1,883	1,784

Proportion of total CO₂ emissions throughout value chain

The proportions expressed in the graph are based on the international guideline "GHG Protocol Scope 3 Standard" related to the calculation and reporting of CO₂ emissions throughout the value chain.

* Of the "scopes" (scope of emissions) for greenhouse gases: (a) Scope 1 emissions are direct GHG emissions from the entity such as gasoline or the combustion of heavy oil; (b) Scope 2 emissions are indirect GHG emissions resulting from the generation of electricity; and (c) Scope 3 emissions include indirect GHG emissions from related activities undertaken outside of the entity such as raw material procurement, production, disposal, logistics, and sales.

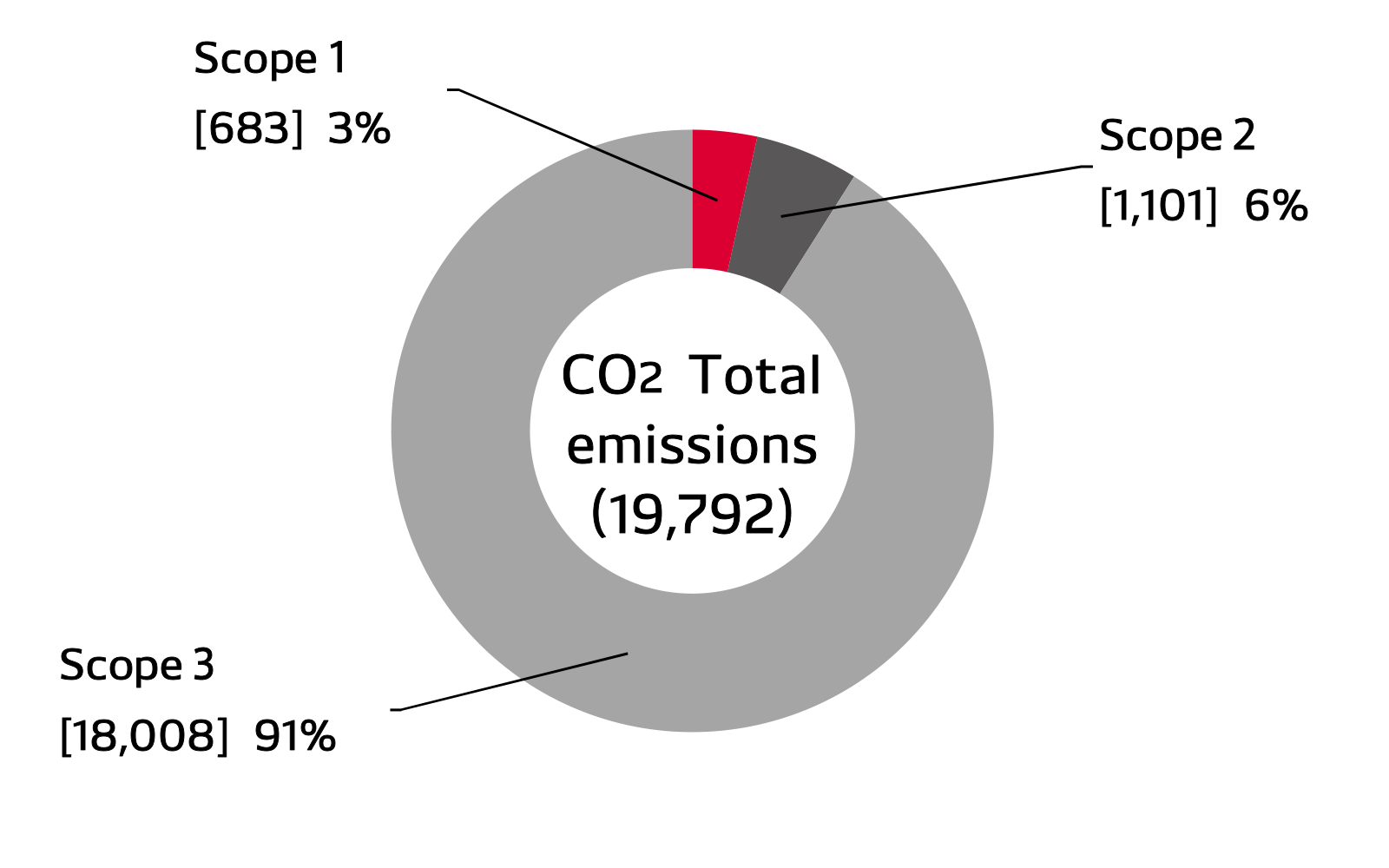

Global CO₂ Emissions of the DENSO Group (Fiscal 2021) (Thousands of t-CO₂)

Breakdown of Global Scope 3 CO₂ Emissions (Fiscal 2021) (the DENSO Group)
Scope 3 category	Emissions amount (Thousands of tons)	Notes
1. Purchased goods and services	7,661 *
2. Capital goods	1,288
3. Fuel- and energy-related activities (excluding Scope 1 and Scope 2)	233
4. Transportation and distribution (upstream)	52
5. Waste generated from operations	38
6. Business travel	22
7. Employee commuting	80
8. Leased assets (upstream)	-	Recorded in Scope 2
9. Transportation and distribution (downstream)	-	Recorded in 4. Transportation and distribution (upstream)
10. Processing of sold products	-	No relevant businesses
11. Use of sold products	8,601 *
12. End-of-life treatment of sold products	33
13. Leased assets (downstream)	-	No relevant businesses
14. Franchises	-	No relevant businesses
15. Investments	-	No relevant businesses
16. Other (upstream and downstream)	-	No relevant businesses
Scope 3 total	18,008

*The CO₂ emissions of "1. Purchased raw materials" and "11. Use of sold products" are being verified by an external organization.

Scope 3 CO₂ Emissions
(Thousands of t-CO₂)
	Fiscal 2019	Fiscal 2020	Fiscal 2021
The DENSO Group	22,880	18,874	18,008

* CO₂ emissions of DENSO CORPORATION, Domestic Group companies and Overseas Group companies are proceeding with verification by external organizations (scopes 1, 2 and part of scope 3, FY2020 and FY2021). Along with that, we may be reviewing the calculation range and method of past data.

Domestic Greenhouse Gas Emissions (DENSO CORPORATION + Domestic Group Companies)
(Thousands of t-CO₂e)
	Fiscal 2019	Fiscal 2020	Fiscal 2021
CO₂	1,169	1,118	1,083
CH₄	12	12	10
N₂O	3	3	3
HFCs	22	2	2
PFCs	39	49	55
SF₆	8	11	11
Others	2	0	0

For reference: Basic rationale on the calculation of total greenhouse gas emissions

At DENSO, all greenhouse gases defined in the Kyoto Protocol are cumulatively calculated, specifically, CO₂ (an energy-related greenhouse gas) and five gases (non-energy-related greenhouse gases), including PFC, HFC, SF6, N₂O, and CH4. The emission coefficient set by region is the conversion factor for CO₂ at DENSO.
In Japan, the Company uses the conversion factors shown in the table below. Outside Japan, DENSO uses the factors publicly announced in each global region.

Please note that in this report the reduction effect of CO₂ by co-generation is converted by the average of conversion factors for different types of thermal power generation. The effect of co-generation is included in the CO₂ emissions of the Company. As for the emissions of the five gases, from fiscal 2007, the Company began using the instructions of the Law Concerning the Promotion of the Measures to Cope with Global Warming enacted and enforced in Japan.

Conversion factors for CO₂ used in the calculation of CO₂ emissions

Electricity	0.453kg-CO₂/kWh
Heavy fuel oil (A)	2.71kg-CO₂/L
Kerosene	2.489kg-CO₂/L
Propane	2.999kg-CO₂/kg
Light crude oil	2.585kg-CO₂/L
City gas	2.171kg-CO₂/m3

* Reference of conversion factor for CO₂: Japan Auto Parts Industries Association

Domestic Volume of Energy Used (DENSO CORPORATION)

(GJ)

	Fiscal 2019	Fiscal 2020	Fiscal 2021
Scope 1	9,209,974	9,622,392	9,021,261
Scope 2	8,931,464	9,189,391	8,411,763
Total	18,141,438	18,811,784	17,433,024

CO₂ emissions from logistics [DENSO CORPORATION]

FY	FY2013 （Base year）	・・・	FY2017	FY2018	FY2019	FY2020	FY2021
1,000t-CO₂	34.4		33.6	34.3	41.8	43.2	40.4

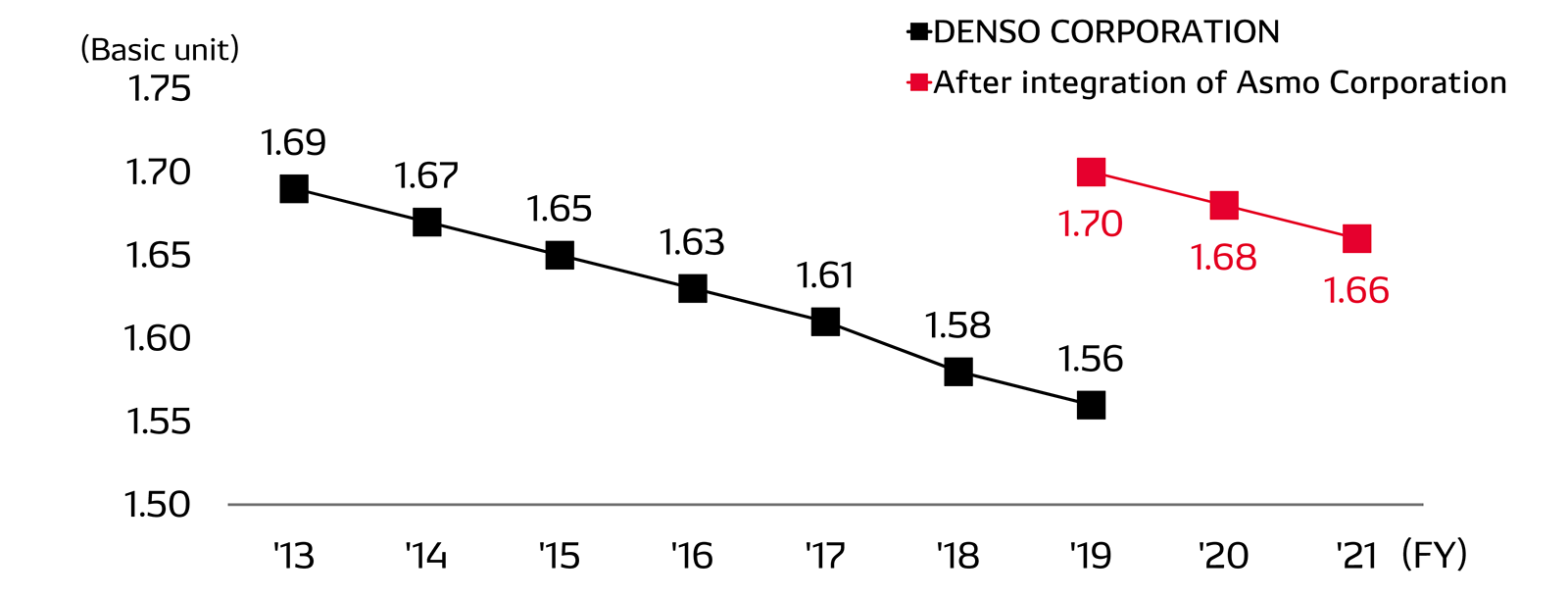

Amount of CO₂ emissions in logistics / Physical production and sales (Unit: 100 million yen) [DENSO Corporation]

＊Asmo Corporation was integrated into Denso Corporation (April 2018).

Action 4 ＜Eco-Materials & Low-Emissions＞

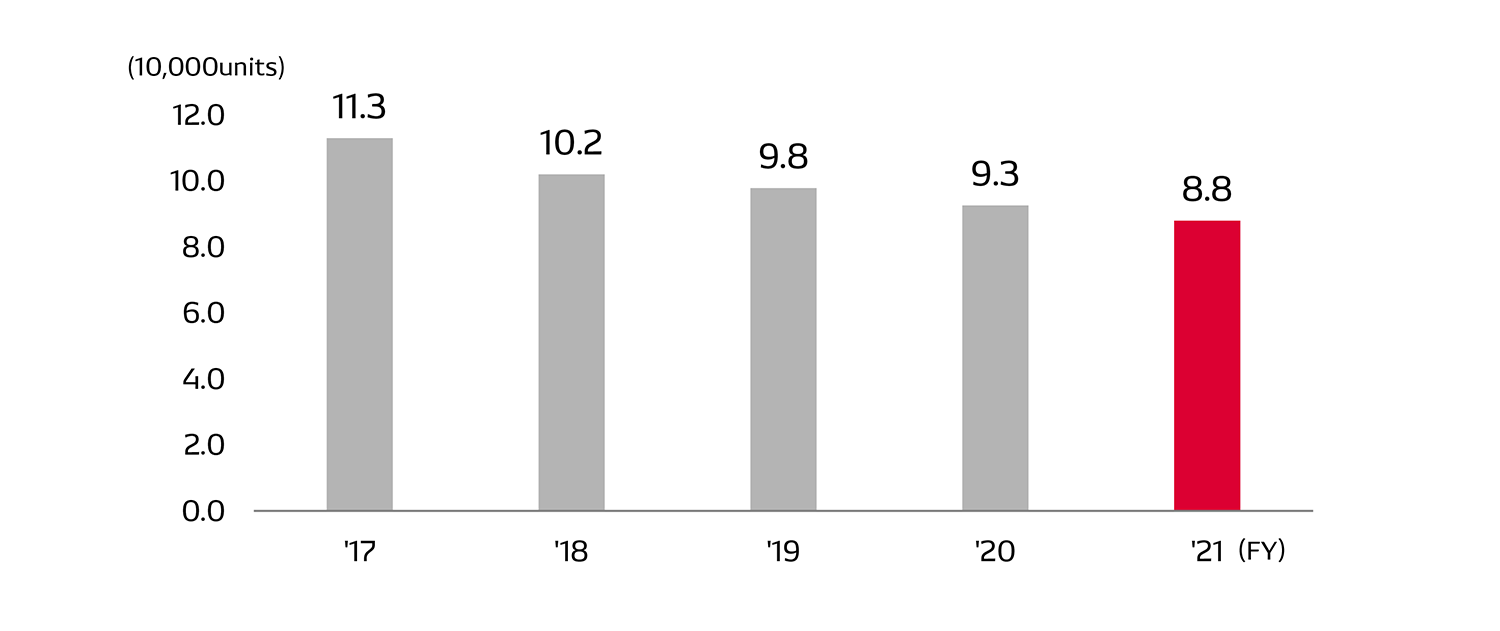

Product reconditioning volumes at DENSO REMANI [Japan]

Action 5 ＜Minimum Environmental Impact Production>
(1)Water

Domestic Water Intake (Usage) Volume (DENSO CORPORATION + Domestic Group Companies)

(Ten thousands of tons)

	Fiscal 2016	Fiscal 2017	Fiscal 2018	Fiscal 2019	Fiscal 2020	Fiscal 2021
Water Intake Volume	1,183	1,142	1,204	1,065	1,111	1,080

Domestic Water Intake Volume (DENSO CORPORATION + Domestic Group Companies)

(Ten thousands of tons)

	Fiscal 2019	Fiscal 2020	Fiscal 2021
Public water	869	917	926
Sewage water	27	30	32
Rainwater	95	104	35
Total wastewater	992	1,051	993

* Collection of data on wastewater commenced in fiscal 2019.

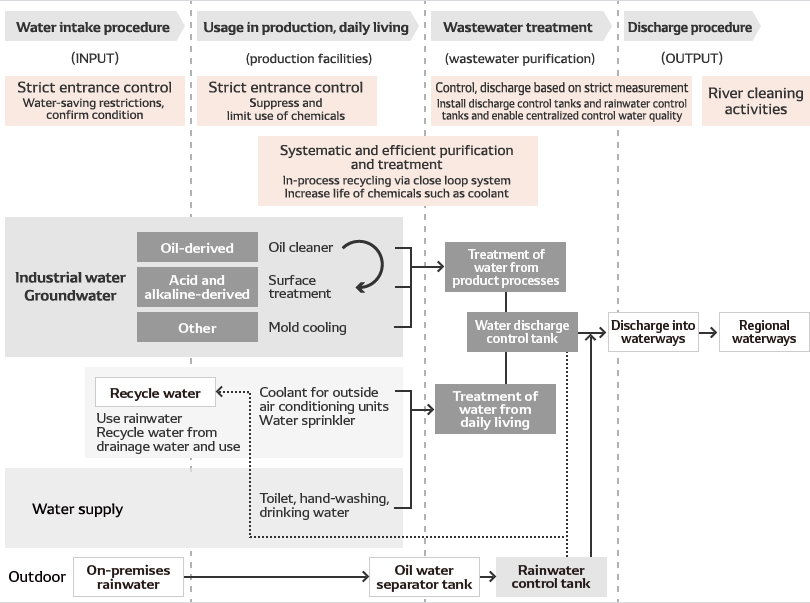

Water Management in Factories

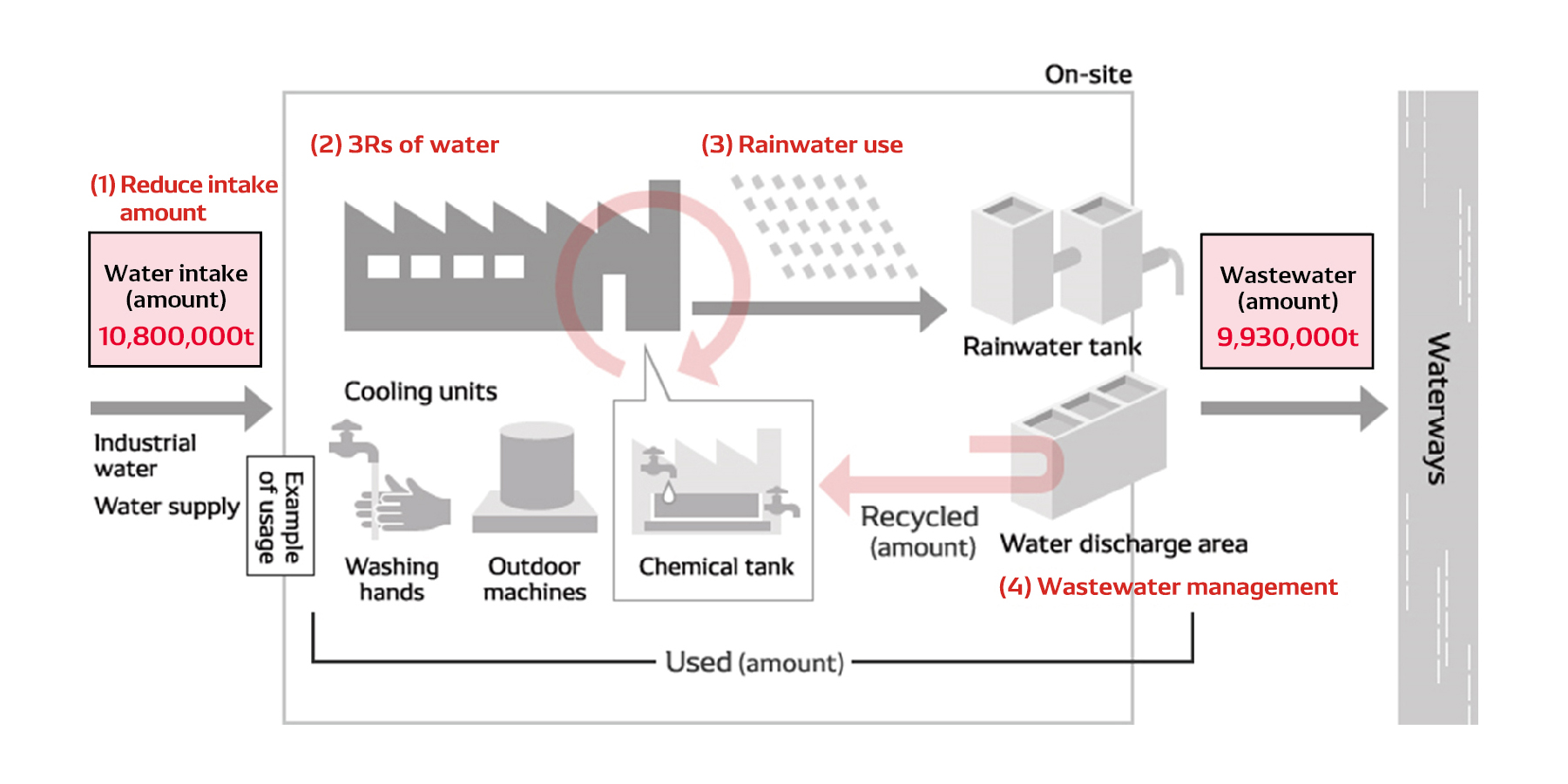

DENSO CORPORATION's water resource management system

Domestic Water Quality (Content When Standard for Wastewater Set at 100) (DENSO CORPORATION)

		Fiscal 2019	Fiscal 2020	Fiscal 2021
PH	Highest	93.0	93.0	94.2
	Lowest	10.3	3.4	5.2
	Average	51.8	51.3	51.8
COD	Highest	32.0	37.6	36.8
	Lowest	8.4	8.4	6.8
	Average	20.5	20.1	19.5
BOD	Highest	16.8	20.4	26.0
	Lowest	2.0	0.8	0.8
	Average	4.9	4.3	5.5
SS	Highest	16.7	21.0	23.3
	Lowest	0.0	0.0	0.0
	Average	4.4	4.3	4.5
Oil content	Highest	50.0	50.0	50.0
	Lowest	0.0	0.0	0.0
	Average	17.0	17.0	17.0
Total nitrogen	Highest	23.5	24.0	19.9
	Lowest	0.0	0.0	0.0
	Average	9.7	9.9	9.1
Total phosphorus	Highest	20.0	21.0	21.0
	Lowest	0.1	0.1	0.1
	Average	4.0	3.3	3.3
Zinc	Highest	71.5	47.5	34.5
	Lowest	1.0	0.8	0.4
	Average	8.4	7.2	5.9
Escherichia coli (E. coli)	Highest	7.7	9.7	6.5
	Lowest	0.0	0.0	0.0
	Average	0.3	0.4	0.3

(2)Air

Domestic (Content When Standard for Emissions Set at Zero) (DENSO CORPORATION)

		Fiscal 2019	Fiscal 2020	Fiscal 2021
Soot and dust	Highest	1.00	0.70	0.20
	Lowest	0.00	0.00	0.00
	Average	0.04	0.06	0.04
SOx	Highest	0.03	0.03	0.05
	Lowest	0.00	0.00	0.00
	Average	0.00	0.00	0.00
NOx	Highest	0.94	0.94	0.97
	Lowest	0.00	0.04	0.00
	Average	0.29	0.32	0.34

Domestic VOCs (DENSO CORPORATION + Domestic Group Companies)

(Tons)

	Fiscal 2019	Fiscal 2020	Fiscal 2021
Emissions amount	612	638	594

(3)Other

Domestic Industrial Waste (DENSO CORPORATION + Domestic Group Companies)

(Tons)

			Fiscal 2019	Fiscal 2020	Fiscal 2021
Valuables	Recycling		107,219	157,587	144,122
Waste	Industrial waste	Special control	2,021	2,114	2,276
	Industrial waste	Other	23,508	29,559	25,549
	Landfill waste		4	13	9
	Resource recycling rate (%)		99.99%	99.97%	99.97%

Action 8 ＜Workplaces Surrounded by Greenery and an Abundance of Nature＞

Tree-Planting Efforts in Collaboration with Local Communities [DENSO CORPORATION and the DENSO Group (Japan)]

Fiscal 2021 results (Note: Includes activities up to June 2021)
Number of times activities were held	Number of participants	Total number of saplings planted
57	8,796 * Local community members and employees of DENSO CORPORATION and the DENSO Group (Japan) and their families	22,812

Action 10 ＜Environmental Management＞

Domestic Environmental Accidents/Violations (DENSO CORPORATION + Domestic Group Companies)

(Incidents)

	Fiscal 2019	Fiscal 2020	Fiscal 2021
Environmental accidents	0	0	0
Exceeding of standard limits	0	0	0

In fiscal 2021, DENSO paid no environment-related fines or penalties.

Acquisition of ISO 14001 at Domestic and Overseas Production Companies (DENSO CORPORATION + Domestic and Overseas Group Companies)

Number of companies that had received ISO 14001 certification as of fiscal 2021 year-end: 73
