Central Air Conditioning System

Central Air Conditioner Smart・Airs (For Toyota Housing Corporation)

Heat shock may occur due to room temperature difference at home.
The central air conditioner Smart Airs reduces the room temperature difference and achieves comfortable living environment all year round.
Because you can separately control the temperature for each floor, you can reduce energy waste and your heating and cooling bills.

Spring Creates a fresh and pleasant atmosphere indoors, even when your windows are closed.
Rainy season Operates as a cooler and dehumidifier to remove humidity in order to provide a pleasant environment.
Summer Your entire house is cooled and provided a pleasant environment that allow you to sleep well, even on sultry summer nights.
Autumn Provides a pleasant environment in which there are few temperature gradients due to the time of day.
Winter The system reduces the temperature difference that may pose heat shock risks especially in bathrooms, maintaining comfortable temperature.

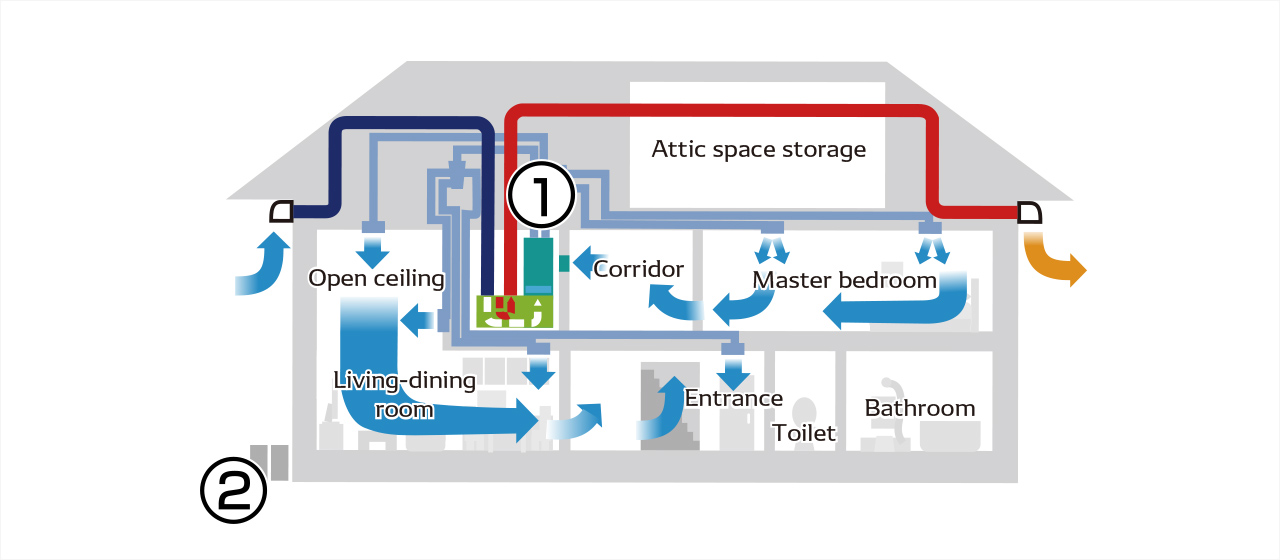

    • ①2F Indoor Unit

    • ②1F Indoor Unit

Central Air Conditioner PARADIA

Having evolved from the idea of turning on each room air conditioner when it is hot or cold, the central air conditioner maintains the whole house comfortable 24 hours a day, 365 days a year.

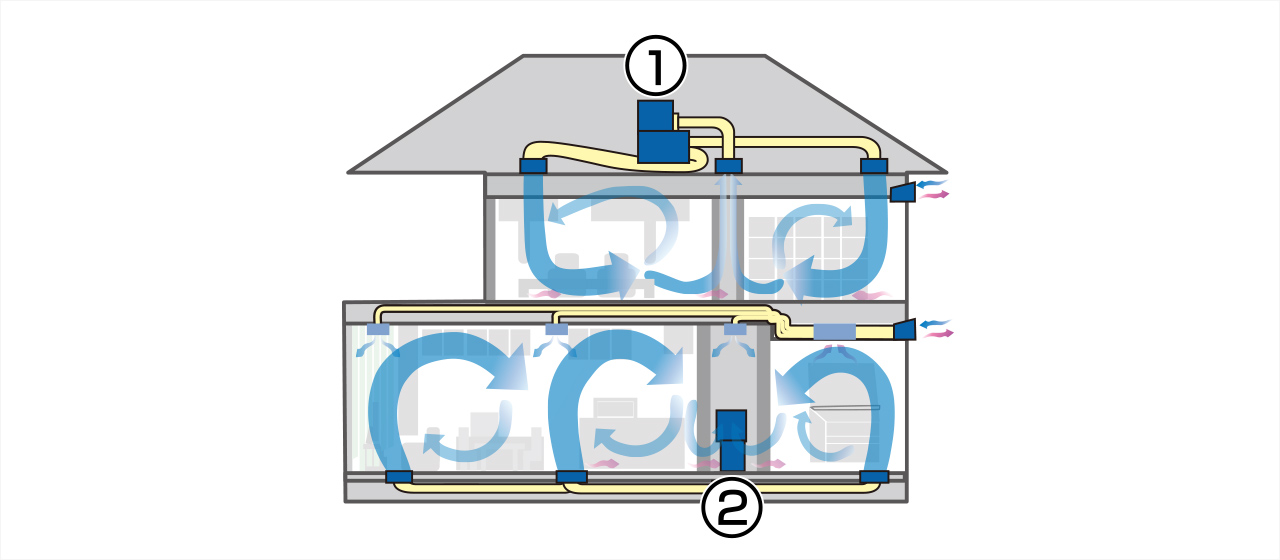

Introduction of the VAV (Variable Air Volume System)* control

The air volume is changed for each area in the indoor space to attain a uniform temperature. With conventional central air conditioning systems, the temperature of rooms varied due to sunlight and other factors.
The temperature settings can be changed for each room depending on the preferences of the users.

VAV control is a mechanism for regulating the air volume in order to adjust the air to the set temperature. The variable damper at the inlet of the duct (which connects to each area) is opened and closed by a servo motor to control the air that flows through the duct from the indoor units.

The remote controller with useful functions.

Easy to read, easy to understand, and easy to use.
Frequently used function icons are arranged in an easy-to-read way at the top of the menu screen.

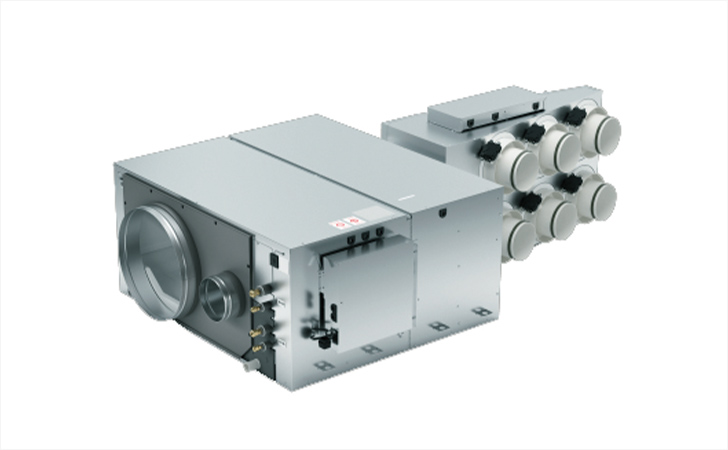

    • ①Indoor Unit

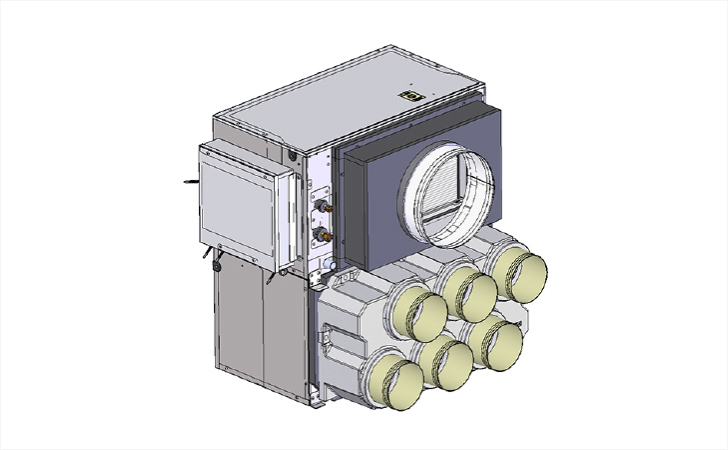

    • Indoor Unit

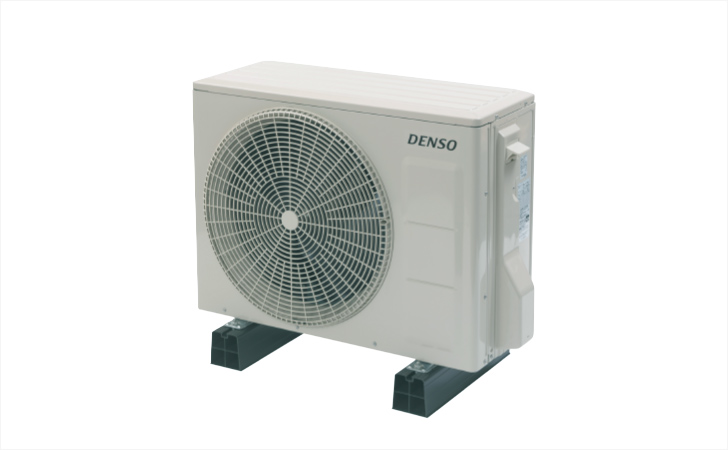

    • ②Outdoor Unit

Handling of the central air conditioning system in the event of a disaster and FAQS
