IRIDIUM POWER

Product lineup of iridium power and introduction of feature.
* The design of the insulator mark varies according to the thermal value.

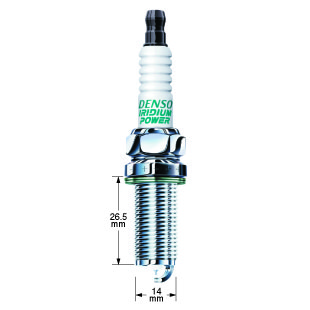

IKH series
  • φ14 mm ×L26.5 mm length long reach type.
  • For Subaru 3 Liter, Nissan, Peugeot, Citroen, and Yamaha Marine.
  • IRIDIUM TOUGH VKH16, VKH20, and VKH22 are also on sale.

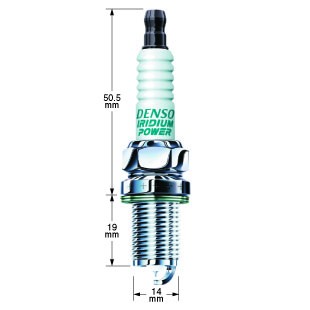

IK series
  • Mainly used for cars. ISO type.
  • φ14 mm ×L19 mm length type.
  • IK22 and above are for tuned engines, with a spark gap of 0.8 mm.
  • IK16G, IK20G, and IK22G have a solid, stainless steel gasket (mainly used with Honda engines).
  • IRIDIUM TOUGH VK16, VK20, and VK22 are also on sale at the same time.
  • IK□L is extended type (spark position 5mm)

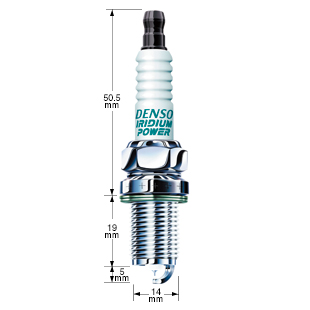

IK-L series
  • φ14 mm X L19 mm X Hex 16mm.
  • Extended Type The spark position is longer than IK20 by 2mm.
  • KJ16CR-L11 / KJ16CR are substituted by IK16L KJ20CR-L11 / KJ20CR11 are substituted by IK20L(see this catalog for more substitution)
IK-G series
  • Mainly used for cars. ISO type.
  • φ14 mm X L19 mm length type.
  • IK22 and above are for tuned engines with a spark gap of 0.8 mm.
  • K16G, IK20G, and IK22G have a solid, stainless steel gasket (mainly used with Honda engines).
  • IRIDIUM TOUGH VK16G, VK20G, VK22G are also on sale at the same time.

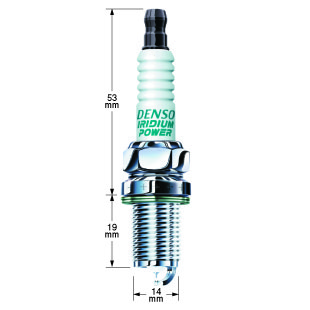

IQ series
  • Mainly used for cars.
  • φ14 mm ×L19 mm length type.
  • IQ22 and above are for tuned engines, with a spark gap of 0.8 mm.
  • IRIDIUM TOUGH VQ16, VQ20, and VQ22 are also on sale.

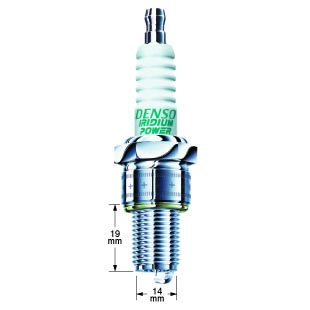

IW series
  • φ14 mm ×L19 mm length fully threaded type.
  • IW16 to 22 are focused on ignitability with a 1.5 mm projection, whereas IW24 to 34 are focused on heat resistance with a projection of -1.5 mm.
  • The spark position of IW24 to 34 is projected 0.5mm compared to normal (1.0 → 1.5 mm).
  • Equipped with 0.4 mm diameter iridium center electrode for improved ignitability.
  • IRIDIUM TOUGH VW16, VW20, and VW22 are also on sale.

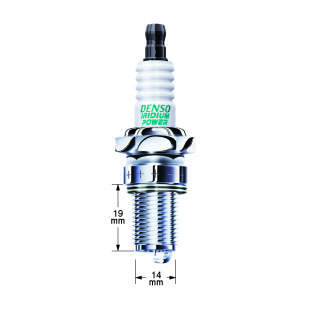

IWM series
  • This type has a gasket face height shortened by approximately 10 mm from the IW Type.
  • The IRIDIUM TOUGH version of the IWM01-□ Iridium Racing plugs.
  • Sold as street-use plugs for 2-cycle 250cc sports bikes.
  • For Honda NSR250, Yamaha TZ250R, Suzuki RGV250Γ (Gamma), Aprilia RS250, KTM260, 300, and 380 (’99 and later).
  • Can also be used for water cooled kart engines.

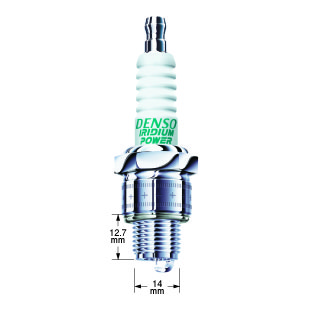

IWF series
  • φ14 mm ×L12.7 mm length short reach type.
  • WF27 utilizes the heat resistance of the iridium electrode to extend the spark position 0.5 mm (1.0 → 1.5 mm)
  • Harnessing the low required voltage of the 0.4mm dia. iridium, the gap is wider than in standard types (0.7 → 0.8 mm). Ignitability is increased even further.

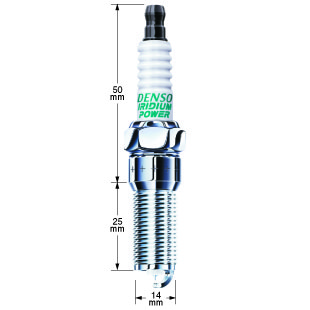

ITV series
  • φ14 mm ×L25.0 mm length tapered seat, long reach type.
  • For the Ford Focus, Mondeo, Escape, Chevrolet Blazer and Mazda Tribute.

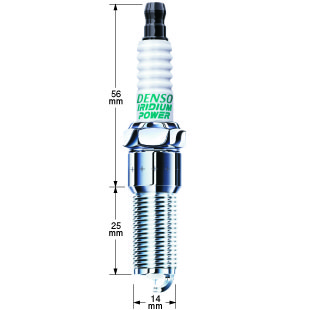

ITL series
  • φ14 mm ×L25.0 mm length tapered seat, long reach type.
  • Designed so that the head of the plug is 6 mm higher than in the ITV.
  • Use with Chrysler’s PT Cruiser, Voyager, Dodge, Magnum for 2005 model years and later.

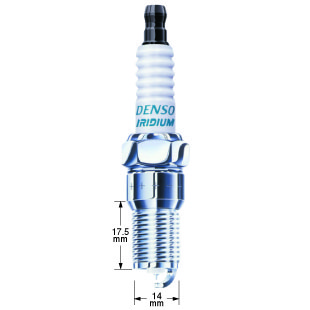

IT series
  • φ14 mm ×L17.5 mm length tapered seat type.
  • For use with GM, Ford, Citroen, Jaguar, Peugeot, Volvo, Mercedes- Benz, Lancia, Renault, Audi, and Mazda.
  • IRIDIUM TOUGH VT16, VT20 are also on sale.
ITF series
  • φ14 mm ×L11.2 mm length tapered seat type.
  • For use with GM and Ford.

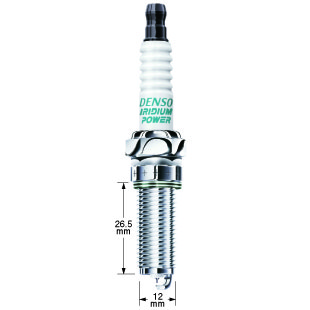

IXUH series
  • φ12 mm ×L26.5 mm lenghth fully threaded type.
  • The insulator is fully projected(1.5mm), creating greater heat range and greater ignitability.
  • 16mm Hex
  • Application: BMW Mercedes Benz Honda Mitsubishi Mazda Subaru Suzuki Daihatsu.
  • IRIDIUM TOUGH VXUH22, VXUH20I, VXUH22I are also on sale.
IXU series
  • φ12 mm ×L19 mm length fully threaded type.
  • The insulator is fully projected (1.5 mm), creating a wide heat range and greater ignitability.
  • 16 mm Hex
  • For use with small cars and imported motorcycles such as Ducati.
  • IRIDIUM TOUGH VXU20, VXU22, VXU24, VXU22I are also on sale.

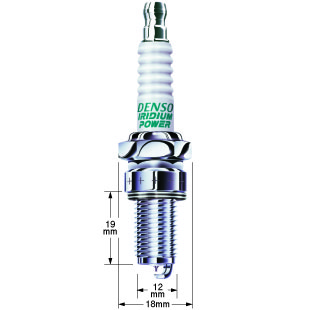

IX series
  • φ12 mm ×L19 mm length fully threaded type.
  • Using the high heat resistance of the iridium electrode, the spark position is projected 0.4 mm more than in standard types. (1.6 → 2.0 mm)
  • Harnessing the low required voltage of the 0.4mm dia. iridium the gap is wider than in the standard types (0.7 → 0.8 mm). A further increase in ignitability.
  • 18 mm Hex

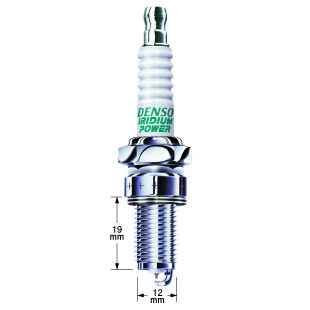

IX-B series
  • φ12 mm ×L19 mm length fully threaded type.
  • Compared to the IX type, the insulator projection is extended 0.9 mm (0.6 → 1.5 mm), resulting in a wider heat range.
  • The spark position is projected 0.8 mm more than the IX type. (2.0 → 2.8 mm)
  • 18 mm Hex

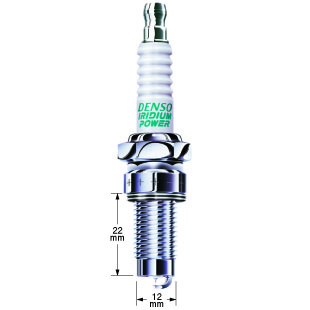

IXG series
  • The Iridium Power versions of the 2 mm shroud type plugs (X24/27GPU) used by Honda.
  • Applicable to CB400SS. An expansion of applications is planned.
  • Applicable to Honda CB400SS, XR400RR, CL400/RS, XLR250R, CBX250S, FTR250, CBX400F, XR250R.

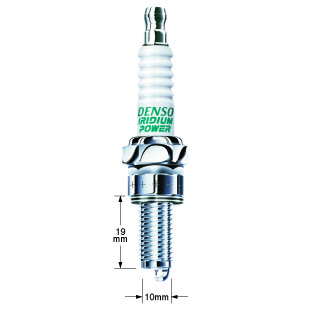

IU series
  • φ10 mm ×L19 mm length fully threaded type.
  • Harnessing the low required voltage of the 0.4 mm iridium center electrode, the spark gap is wider than in normal type. A further increase in ignitability. (0.8 → 0.9mm)
  • For motorcycles such as Yamaha and Kawasaki, also for Ferarri, Maserati, and Alfa Romeo.

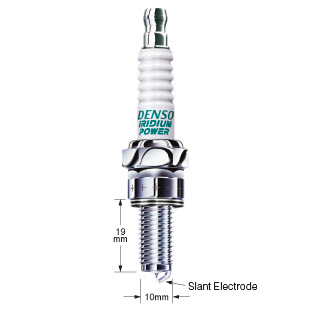

IU-A series
  • φ10 mm ×L19 mm length fully threaded slant ground electrode type.
  • Harnessing the low required voltage of the 0.4 mm dia. iridium, the gap is wider than in normal type (0.7 → 0.9 mm). Ignitability is greatly increased.
  • By making this a single electrode, the spark location is stabilized compared to in normal types (double ground electrode), securing an ideal combustion condition.
IUH series
  • φ10 mm ×L19 mm length half-threaded type.
  • Using the high heat resistance of the iridium electrode, the spark position is extended 0.4 mm compared to standard types (1.6 → 2.0 mm)
  • Use only with Honda

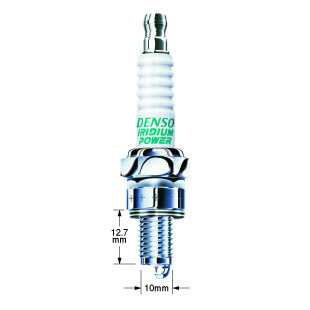

IUF series
  • φ10 mm ×L12.7 mm length short reach type.
  • Using the high heat resistance of the iridium, the spark position is extended 0.4 mm compared to standard types (1.6 → 2.0 mm)
  • Harnessing the low required voltage of the 0.4 mm dia. iridium, the spark gap is wider than in normal types (0.7 → 0.8 mm). Ignitability is greatly increased.
IUF-A series
  • φ10 mm ×L12.7 mm length short type.
  • Ideal for Gorilla/ Monkey Racing.
  • The ground electrode has a slant shape, reducing the thermal stress on it.

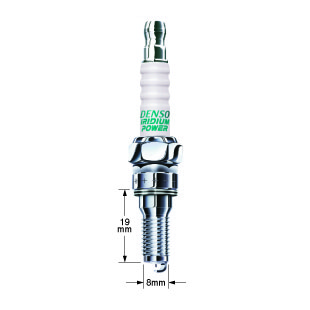

IY series
  • φ8 mm ×L19 mm length tapered seat, half thread type.
  • The world’s first 8 mm thread diameter iridium plug.
  • Can be used with Honda Smart Dio (’04-), VFR400, RVF400, Kitaco Monkey Head, and NR750.

Actual products may differ from images shown.
