Major sparkplug product lineup

Cars & trucks plugs

Long-reach plug

Long-reach plug

K20HR-U11・K16HPR-U11

  • φ14×L26.5×16
  • TOYOTA

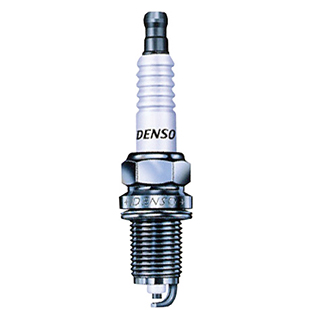

ISO-compatible small hex plug

ISO-compatible small hex plug

K16R-U11・K16PR-U11

  • Compatible with ISO standards
    * SKJ20DR-M11S with stainless steel gasket
  • φ14×L19×16
  • TOYOTA, and others

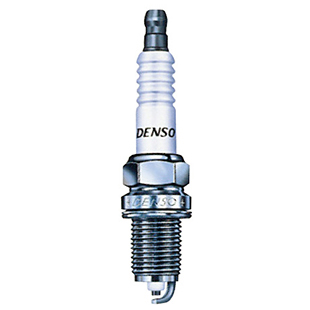

Small hex plug

Small hex plug

Q16R-U11・Q16PR-U11

  • By reducing the hex size (16 mm), this plug is lighter in weight.
  • φ14×L19×16
  • TOYOTA, and others

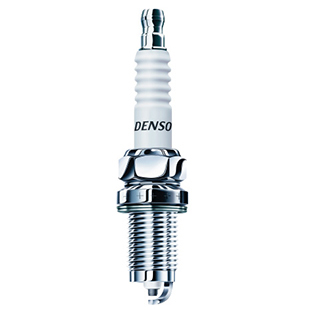

Extended shroud plug

Extended shroud plug

KJ20DR-M11・KJ20DR-M11S

  • φ14×L19×16
  • HONDA

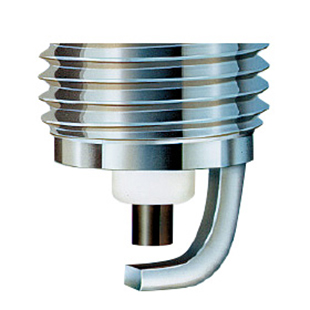

Extended plug

Extended plug

KJ20CR11・KJ16CR-U11

  • KJ20CR11: no U-Groove
    KJ20CR-U: with U-Groove
  • φ14×L19×16
  • MAZDA, MITSUBISHI

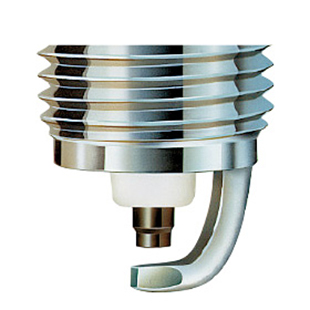

Extended plug

Extended plug

KJ20CR-L11

  • The tip of the ground electrode has a taper-cut, and the center electrode is made finer for improved ignitability.
  • φ14×L19×16
  • HONDA

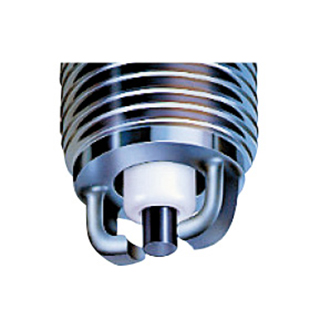

Double-electrode semi-surface plug

Double-electrode semi-surface plug

W20ETR-S11

  • With this new supplementary gap, resistance to fouling is improved.
  • φ14×L19×20.6
  • TOYOTA, DAIHATSU

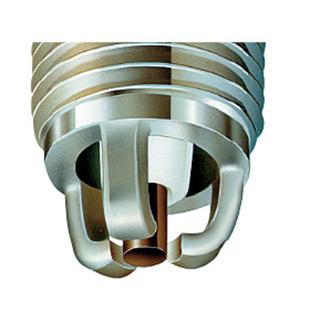

Triple-electrode plug

Triple-electrode plug

K22PB・W20EPB

  • Durability is improved with three ground electrodes.
  • φ14×L19×16 (K22PB)
  • AUDI / VW / CITROEN / FIAT / MERCEDES-BENZ / RENAULT

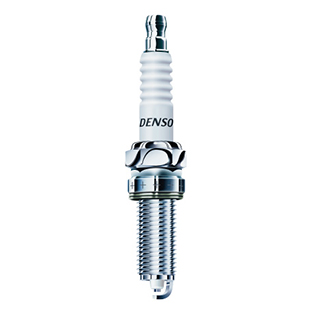

φ12 long-reach plug

φ12 long-reach plug

XU22HR9

  • φ12×L26.5×16
  • DAIHATSU

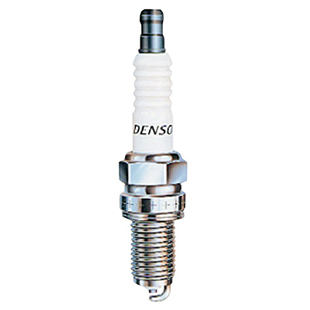

φ12 plug

φ12 plug

XU22EPR-U

  • By reducing the hex size (16 mm), this plug may be used in light vehicles. Thread diameter is 12 mm.
  • φ12×L19×16
  • SUZUKI / MITSUBISHI

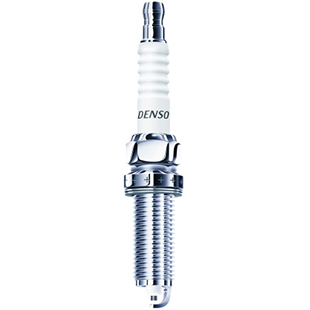

φ12 long-reach plug with 14 mm hex size

φ12 long-reach plug with 14 mm hex size

XE20HR-U9

  • φ12×L26.5×14
  • RENAULT

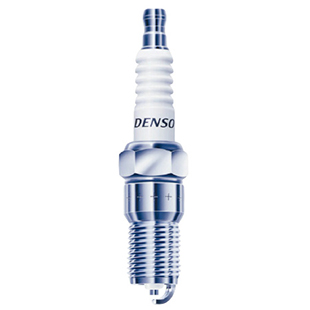

Taper seat plug

Taper seat plug

T16EPR-U

  • This plug may be installed only in non-Japanese cars and has no gasket.
  • φ14×L17.5×16
  • GM, Ford

Actual products may differ from images shown.
